120T Hot Metal Transfer Wagon Melton Iron Ladle Car 1435mm Standard Gauge
- Category： Railway Ladle Transfer Wagon
- Pay load: 125t
- Tare weight(without ladle):≥25t
- Min radius: ≤90m
- Track gauge: 1435mm
120T Hot Metal Transfer Wagon Melton Iron Ladle Car 1435mm Standard Gauge
1. Brief introduction:
120-ton hot metal transfer wagon is engineered for reliable, low-speed transport of molten iron within the steel plant. Its optimized design ensures seamless transfer from the blast furnace to your processing facilities.
2. Features:
- Proven Design: Simple structure for maximum reliability and minimal downtime.
- Operational Efficiency: Compact size and small turning radius for excellent layout flexibility.
- Low TCO: Features low acquisition cost and is designed for easy operation and maintenance.
- Standard Components: Built with a robust chassis, reliable bogies, and standard coupler buffers for long service life.
3. Main technical parameters:
|
The max. load |
125 tons |
|
Tare weight |
≥25t |
|
The max. total weight(wagon, tanker, and loaded molten metal) |
≥190t |
|
Max. dimensions(Length*width*height) |
8350mm*4000*5000(with the tanker) |
|
Coupler center height |
880mm |
|
The distance from the lowest part of tanker wagon to rails |
≥15mm |
|
Rail gauge |
1435mm |
|
Max. running speed when loaded |
As per customer requirement |
|
Min radius |
≤90m |
|
Inner width of chassis base |
≥3110mm |
|
The gap between tanker base and chassis base |
≥15mm |
|
The gap of tanker and cover plate of chassis |
≥15mm |
|
The inner distance of base groove |
≥1480mm |
|
Coupler |
13# upper active coupler |
|
Bogie |
Welded bogie |
|
Wheel diameter |
840mm |

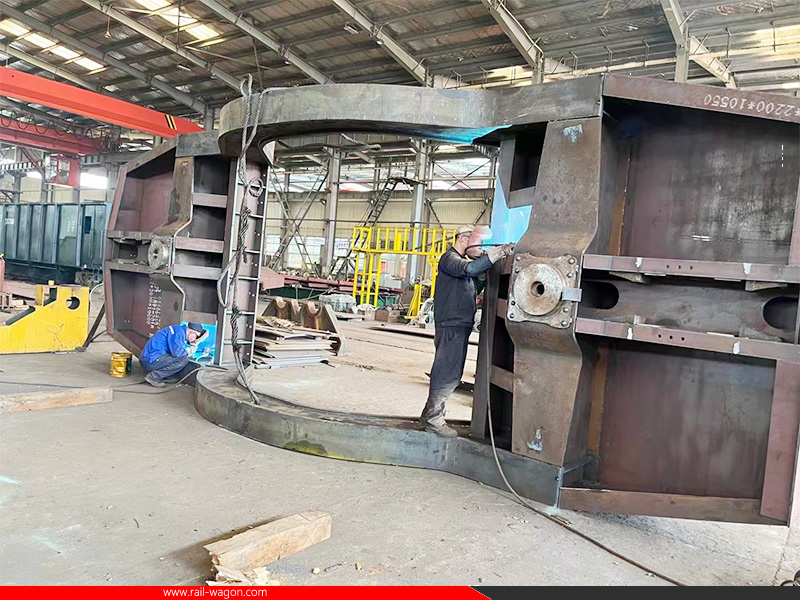

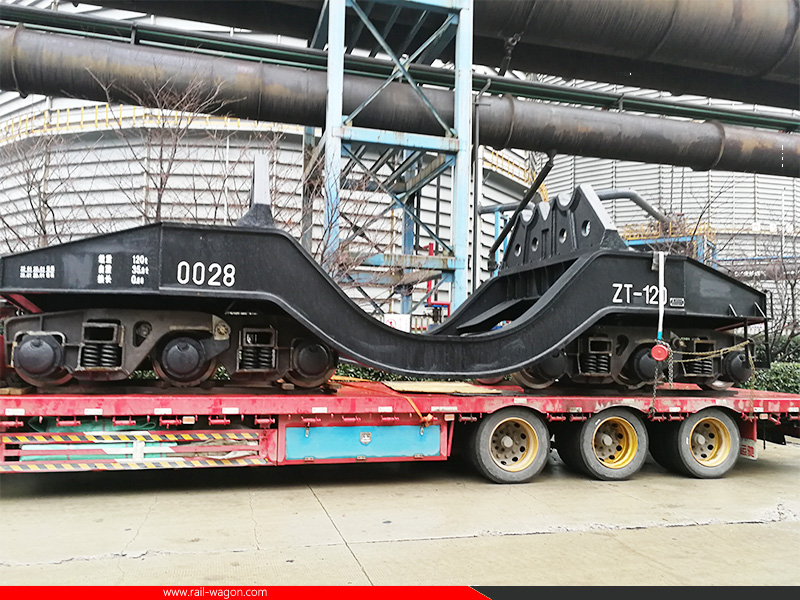

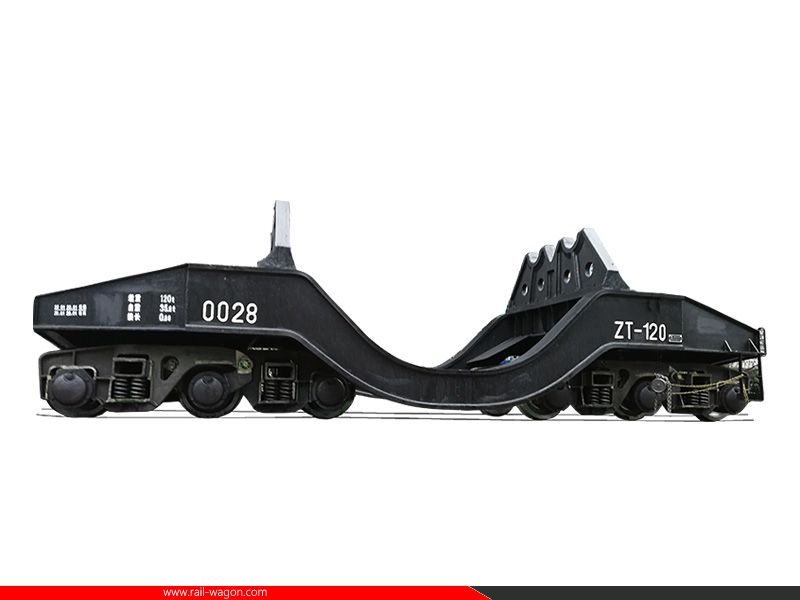

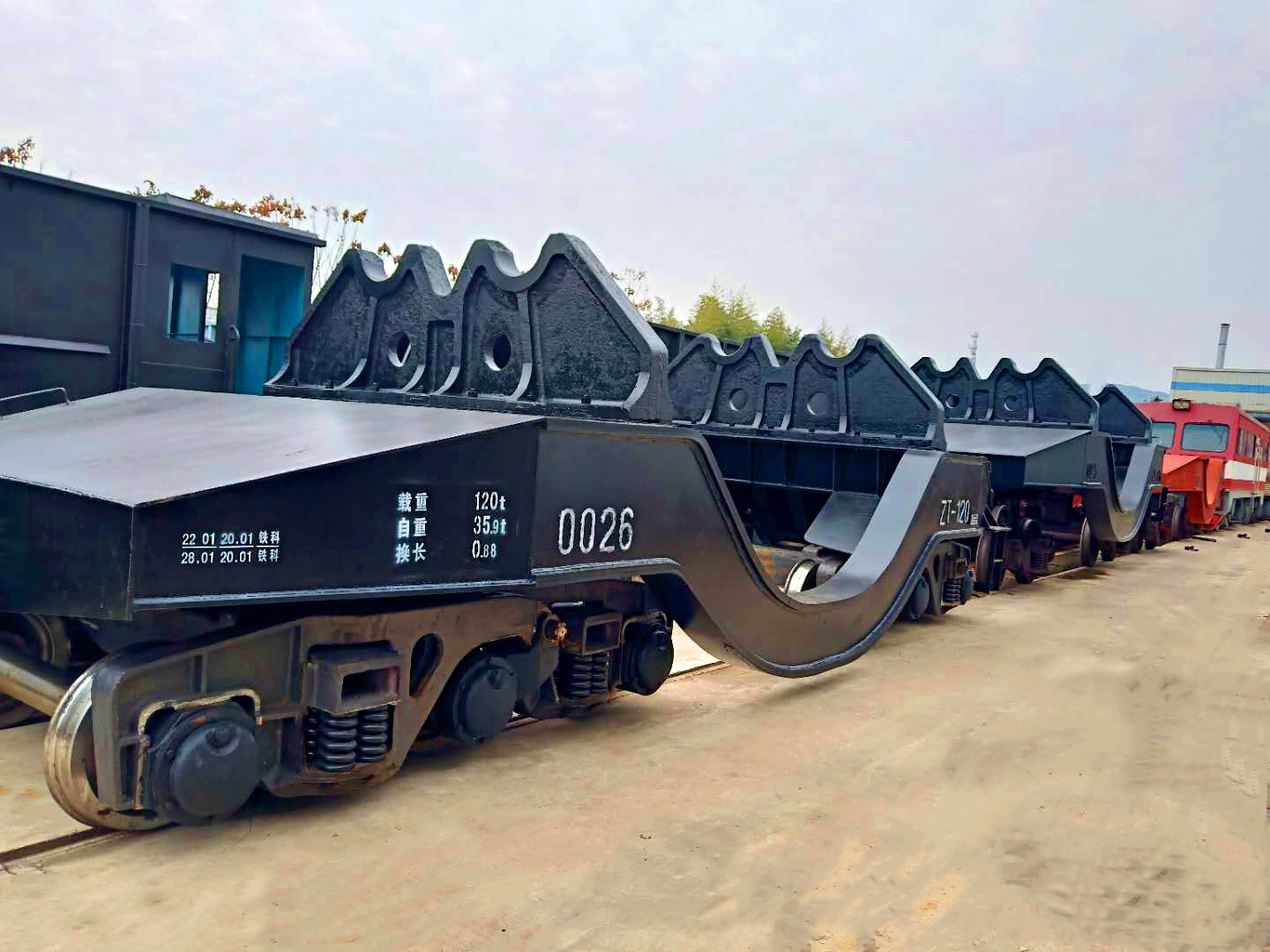

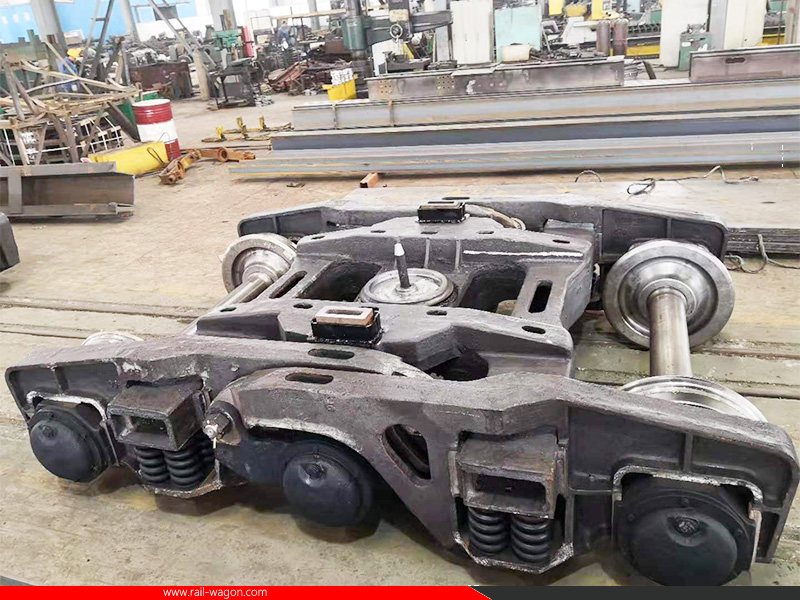

4. Detail photos:
