140t Molten Iron Transfer Wagon 1435mm Gauge Railway Ladle Cart

140t Molten Iron Transfer Wagon 1435mm Gauge Railway Ladle Cart

Category： Railway Ladle Transfer Wagon
Pay load: 140t
Tare weight(without ladle):≥35.6
Min radius: ≤100m
Track gauge: 1435mm
INQUIRY EMAIL

140t Molten Iron Transfer Wagon 1435mm Gauge Railway Ladle Cart

1. Brief introduction:

Engineered for reliability and efficiency, our 140-ton Hot Metal Transfer Car is the proven solution for moving molten iron within your steelworks. Its robust design ensures safe, low-speed operation with low lifecycle costs.

2. Key Features & Engineering Highlights:

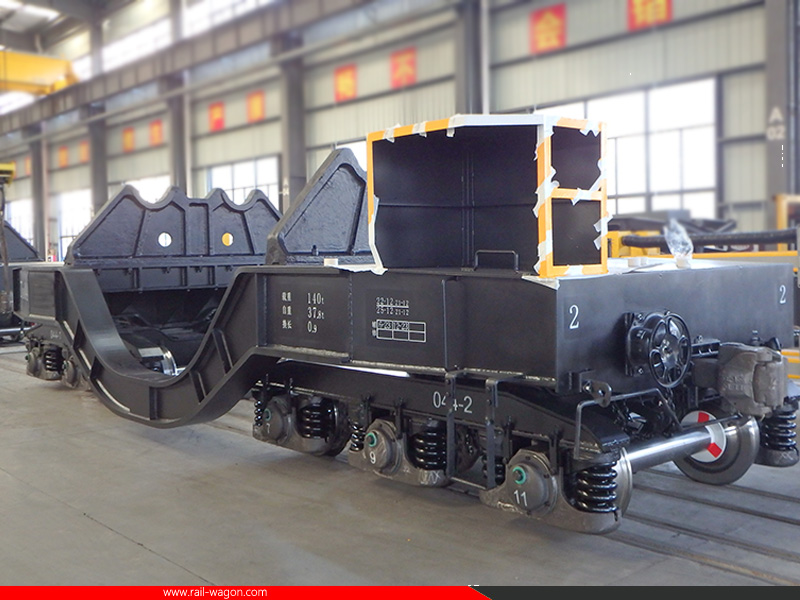

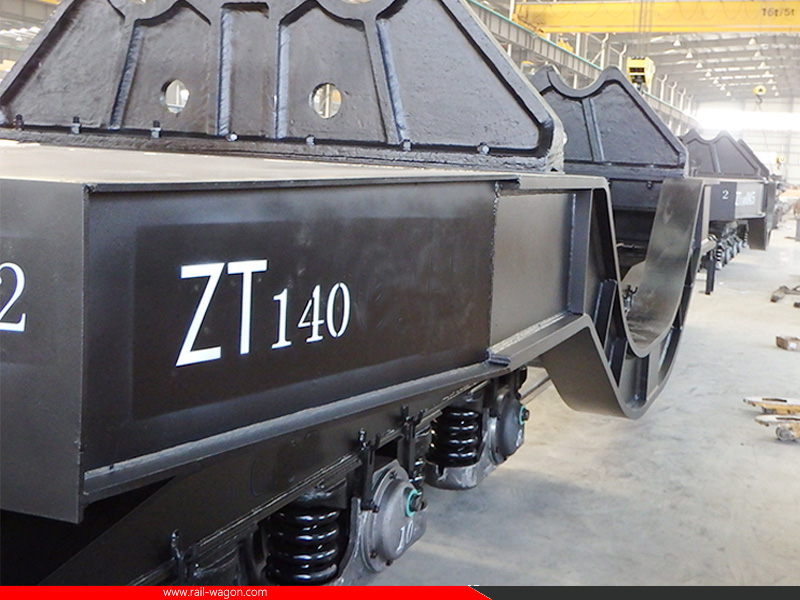

Heavy-Duty Welded Structure: The wagon body is a fully welded frame made from Q355B high-strength steel, incorporating sleeper beams, traction beams, and cross beams for maximum integrity under extreme loads.

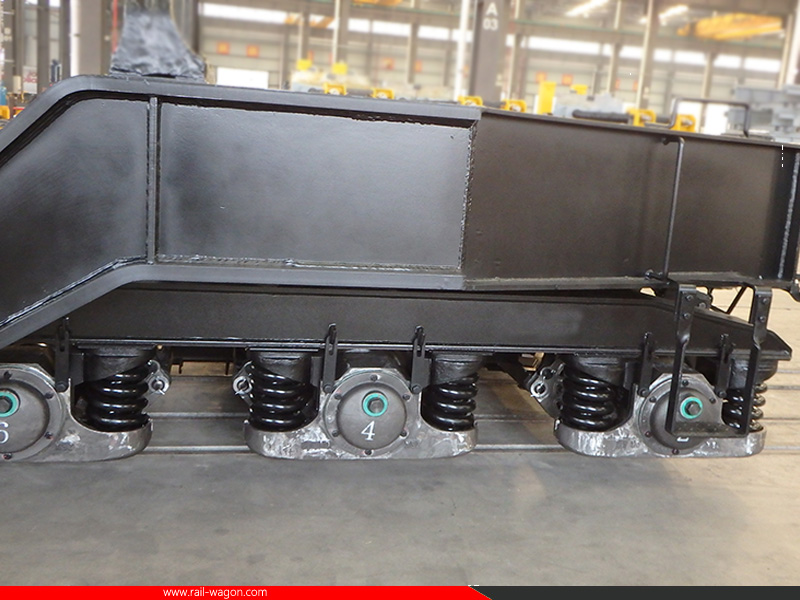

Precision Running Gear: Features robust, welded three-axle bogies with a 650mm wheel diameter. The high-performance suspension utilizes 60Si2CrVA spring steel coils for superior shock absorption and stability.

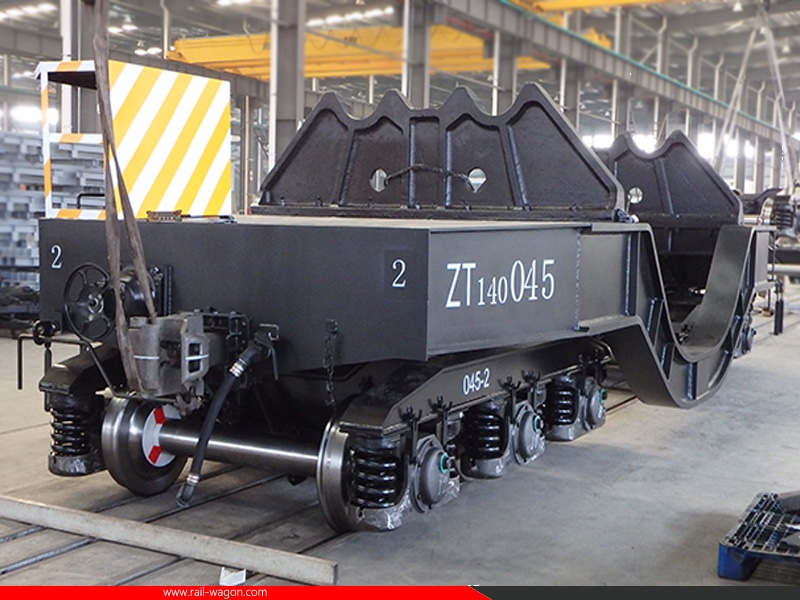

Standardized & Reliable Systems: Equipped with interoperable 13B couplers, MT-2 buffers, and a dual redundant braking system (120 Valve air brake and manual brake) for maximum operational safety and compatibility.

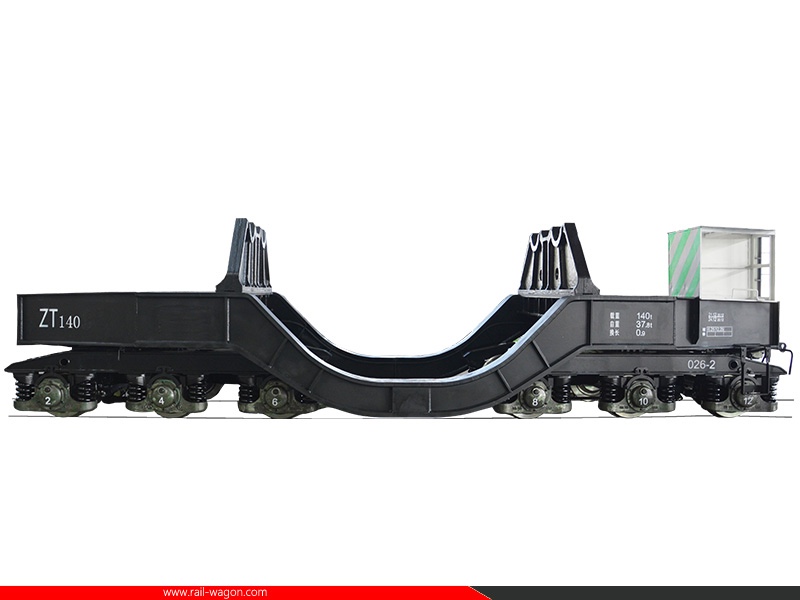

Operator-Focused Design: Includes a dedicated lookout shed and is designed for easy operation and maintenance, reducing downtime and ensuring smooth logistics from blast furnace to steelmaking facility.

3. Main technical parameters:

The max. load of molten metal	140 tons
Tare weight(without tanker)	≤35.6t
Axle load	31t
The max. total weight(wagon, tanker, and loaded molten metal)	≤186t
Max. dimensions(Lengthwidthheight)	9800mm32602410(without the tanker)
Coupler center height(empty)	880mm
The distance from the lowest part of tanker wagon to rails	≥15mm
Rail gauge	1435mm
Max. running speed when loaded	20km/h, 10km(turnout)
Max. running speed when empty	30km/h,15km/h(turnout)
Min radius	100m
Inner width of chassis base	≥3110mm
The gap between tanker base and chassis base	≥15mm
The gap of tanker and cover plate of chassis	≥15mm
The inner distance of base groove	≥1480mm
Coupler	13# bottom active coupler
Bogie	Welded three axle bogie
Wheel diameter	650mm
Limit gauge	Comply with GB/T 146.1-83
