Electric Railway flat wagon - 25 Ton Heavy-Duty Transport

1. Product Overview

This electric low-platform Railway flat wagon can operate independently or be towed. It is widely applied to transport construction equipment, steel rails, sleepers and various materials in railway construction, industrial and mining enterprises, logistics ports and metallurgical plants.

2. Core Advantages

Strong Load-Bearing Capacity: 25t rated load, ≤15t self-weight, all-steel welded frame and center beam bearing structure, ensuring stability and durability.
Efficient & Flexible Operation: Dual 22kW drive motors, maximum speed 25km/h with stepless speed regulation; 100m minimum curve radius for smooth operation on complex tracks.
Safe & Reliable: Equipped with complete braking system (air brake, foundation brake, NSW hand brake), wheel-shoe braking and safety hangers for all components.
Easy Operation & Low Maintenance: With driver's cab, supporting on-board and remote control; streamlined structure, reducing daily maintenance costs.
Customizable Design: Lock seat, track gauge, size and power supply can be customized to meet different regional and scenario needs.
Energy-Saving & Eco-Friendly: Electric-driven, no exhaust emission, lower operating cost compared with fuel-powered wagons.

3. Key Technical Parameters

Parameter Name	Data
Load Capacity	25t
Track Gauge	1435mm (Customizable)
Minimum Curve Radius	100m
Maximum Speed	25km/h, Stepless Speed Regulation
Drive Power	22kW×2
Tare Weight	≤15t
Power Supply	AC380V (±15%), 50Hz (±2%), Diesel Generator

4. Main Structure

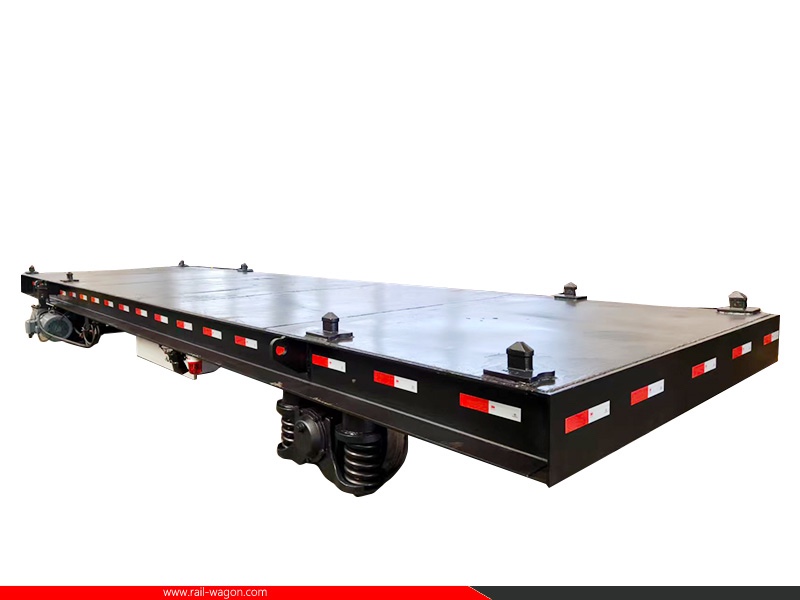

Wagon Body: All-steel welded underframe with 6mm checkered steel plate, stable and anti-skid.

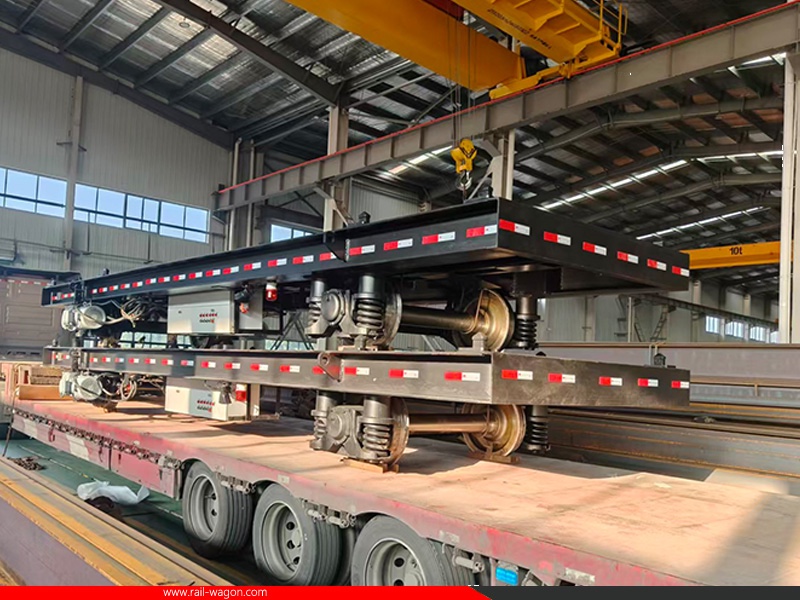

Bogie: Driven and active Bogies (welded structure), active bogie equipped with 2 sets of frequency conversion motor + reducer.

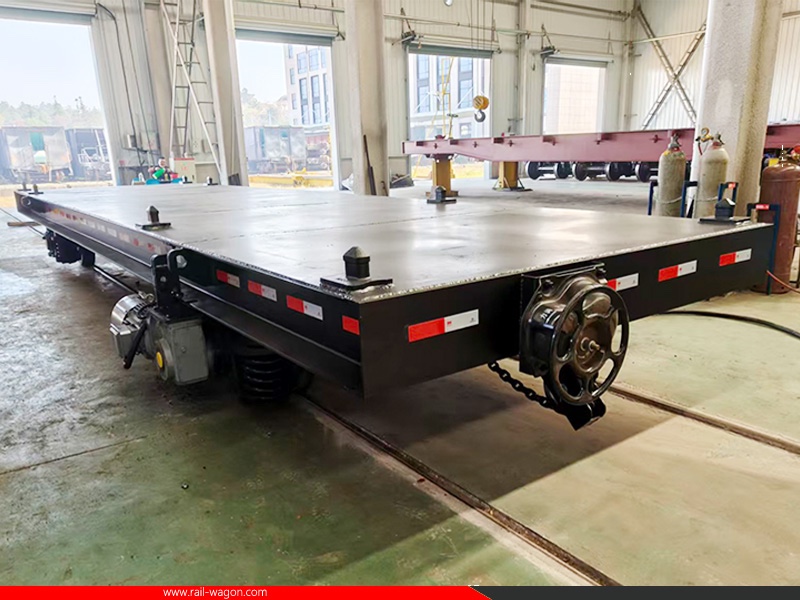

Braking System: Air brake, foundation brake and NSW hand brake, ensuring safe deceleration and parking.
Coupler Device: C-grade steel No.2 coupler and small coupler, 2 wagons per group for linkage transport.
Hydraulic Device: 4 horizontal push cylinders (600mm extension) and 4 lifting cylinders (400mm stroke), facilitating maintenance.
