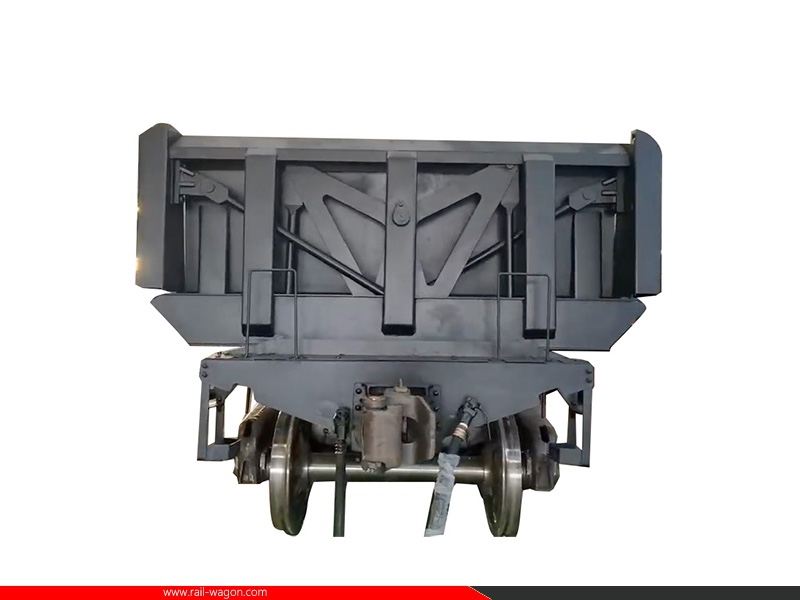

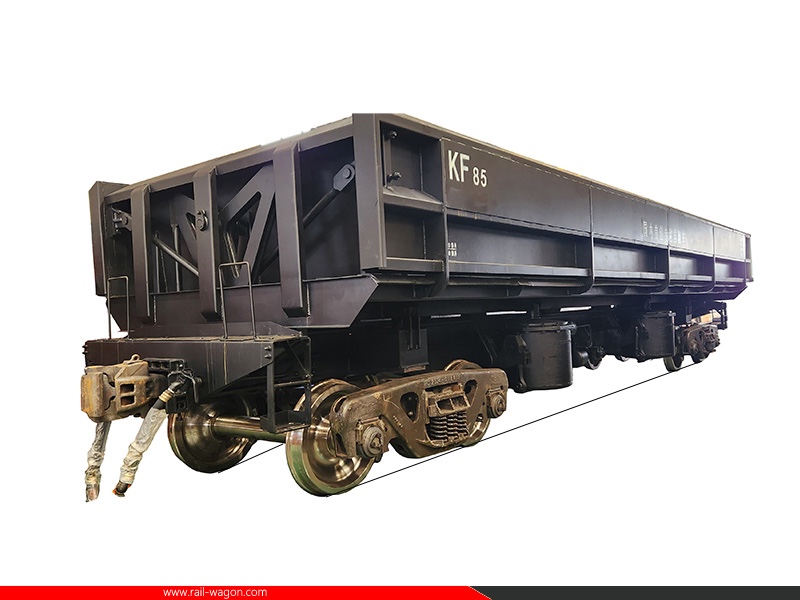

85T Pay Load Side Tipping Wagon Air Cylinder Tipping Discharge Railway Tipping Car

Category： Railway Side Dump Wagon
Pay load: 85t
Tare weight: <40t
Volume: 36.6 m3
Length: 13234mm
INQUIRY EMAIL

85T Pay Load Side Tipping Wagon Air Cylinder Tipping Discharge Railway Tipping Car

1. Brief introduction:

KF85 85T pay load side tipping wagon is specially designed to transport heavy bulk goods like ore, rock, gravel, coal, building materials and etc. It is mainly applied in factories, mine developers, big construction sites, whose railway lines are complied with national grade III or above and with mechanized loading equipment. This wagon is mainly composed of chassis, carriage, bogie, titling cylinder, titling pipeline, control doors, air brake and coupler buffer. It has the features of stable tipping, rapid unloading, easy operation, high transportation efficiency, safe and reliable.

2. Main technical parameters:

Load	85t
Tare weight	≤40 t
Capacity	36.6 m3
Axle load	30t
Gauge	1435mm
Coupler type	#13B Grade C Steel
Coupler center height(empty)	880 mm
Length	13234 mm
Bogie type	2RG Bogie
Fixed axle distance	1800mm
Wheel diameter	840mm
Load method	Upper load, two sides pneumatic tipping unloading
Side wall tipping degree	45°
Tipping cylinder working pressure	0.65MPa
Number of tipping cylinders	4 pcs
Brake method	Air brake
Brake distance	≤1400 m
Brake ratio	7.8
Max. running speed	80 km/h
Min radius	80m
Lifespan	25 years
Limit gauge	Comply with Comply GB146 1-83 ‘standard gauge railway rolling stock gauge’
