1. Brief introduction

This meter gauge bogie is developed on basis of Chinese K6 ride control bogie. It is applicable to Southeast Asia Countries and African countries, wherever rail line is meter gauge.
This meter gauge adopts three piece ride control structure. It is mainly composed of wheels assembly, side frame, roller bearing assembly, adapter, brake rigging, load spring, wedge and damping device, bogie side frame assembly. The bogie’s performance meets the criteria of GB/T5599 and its Intensity design comply with the regulations of TB/T1335.

2. Main features

• The traditional 3-part bogie includes a bolster, side frame, bearing saddle, bearings, and other key materials that comply with AAR regulations.
•  Its design accommodates small curve radii, making it suitable for routes in the hilly regions of Southeast Asian nations.
• Featuring a damping spring and control wedge, the damping system enhances both the bogie's stability and its shock absorption capabilities.

3. Main technical parameters:

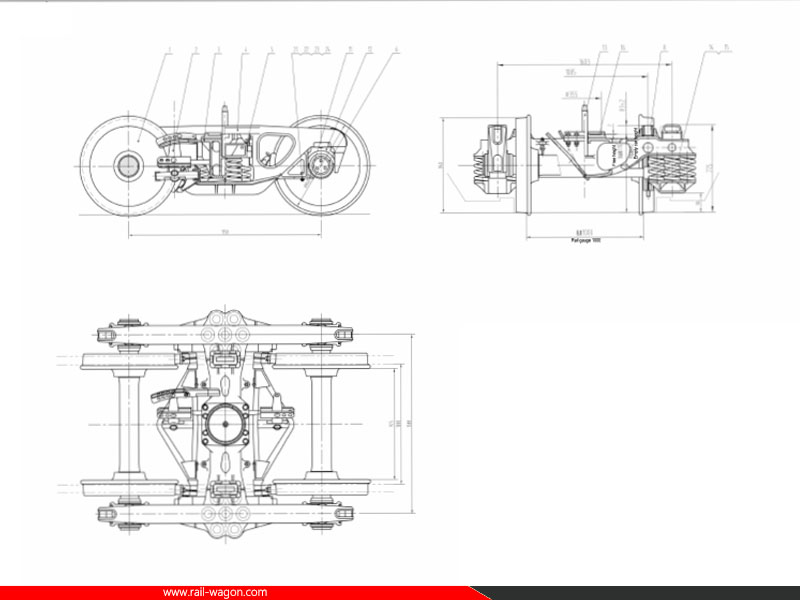

4. Drawing

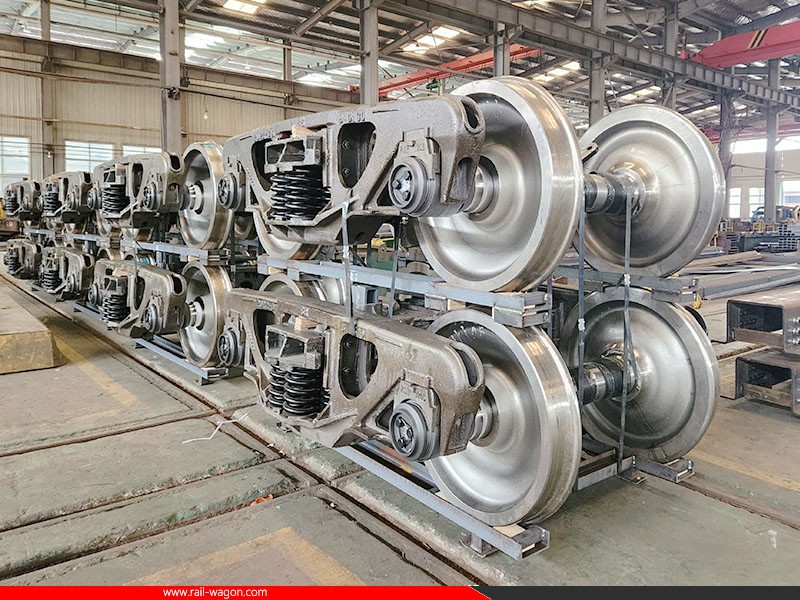

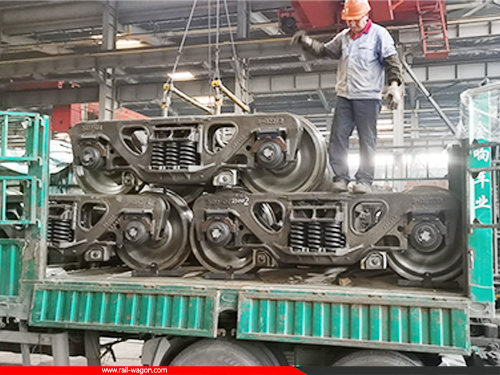

5. Loading photo:
