1520mm Broad Gauge Bogie Ride Control Bogie 3 Piece Casting Steel Bogie Axle Load 25T

1520mm Broad Gauge Bogie Ride Control Bogie 3 Piece Casting Steel Bogie Axle Load 25T

1. Brief introduction

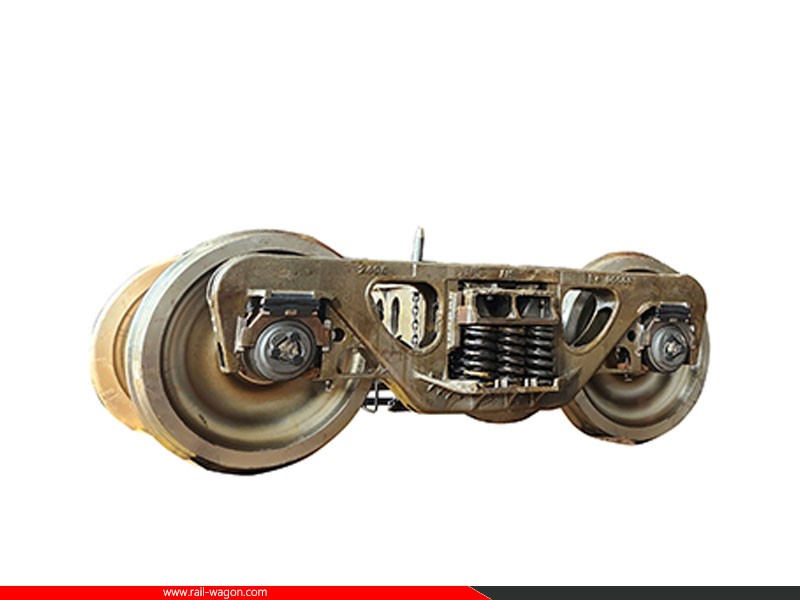

The 1520mm bogie is a 3 piece ride control casting bogie. It is applicable to Russian standard freight wagons.
The bogie is composed of side frames, bolster, wheelsets, bearings, adapters, wedge and damping springs, and basic brake device, and etc.The bogie adopts two-stage stiffness spring; a lower center plate with a diameter of φ355mm, and a conductive center plate wear plate installed in the lower center plate; 353130B compact bearings approved by Document No.21 The Transportation and Loading Truck (2006); LZ50 steel axles and 957mm wheel; the basic brake device adopts the Austenitic-Bayer ductile iron bushing and combined brake beam.

2. Main features:

• The traditional 3-part bogie includes a bolster, side frame, bearing adapter, bearings.
• Featuring a damping spring and control wedge, the damping system enhances both the bogie's stability and its shock absorption capabilities.




3. Main technical parameters:

4. Drawing

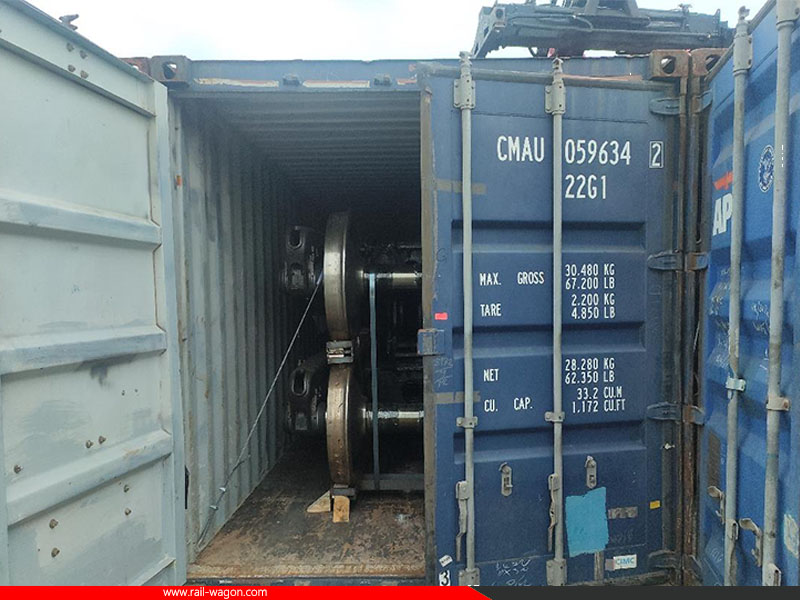

5. Loading photo:
