1. Brief introduction:

The brake beam is the most important part of the railway vehicle basic braking device, mainly used to transmit the braking force to the brake shoes through the brake beam during braking, causing the vehicle to stop moving forward. According to the manufacturing processes, brake beams are divided into bow bar brake beams, channel steel brake beams, and combination brake beams. The combination brake beam is the most advanced and normally applied for freight wagons. It is produced by forging and assembly welding.

2. Main features of combination brake beam assembly:

• Adopt assembled structure: the production quality better controlled compared with traditional casting brake beam;
• The stress distribution is more reasonable, due to the complete brake beam structure;
• Adopt forging pillar and clip, improving the reliability in work;
• Adopt non-metal slid wear plate, less weariness and inspection work;
• Adopt slid block structure, improving the strength, restraining eccentric wear of brake shoes.

3. The brake beams ranges we could provide:

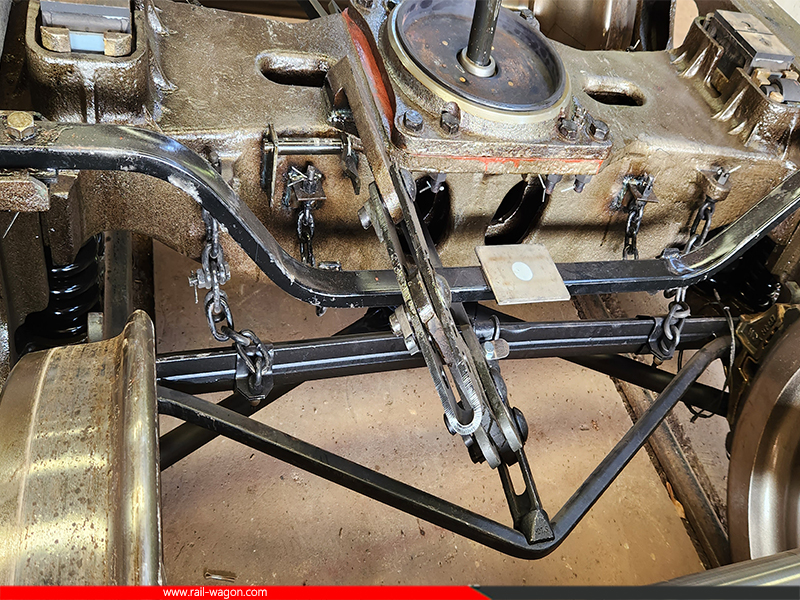

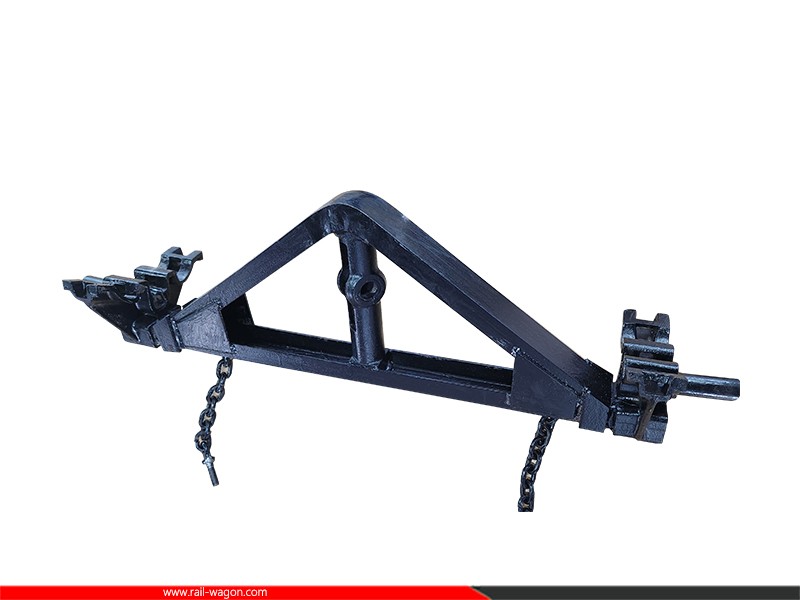

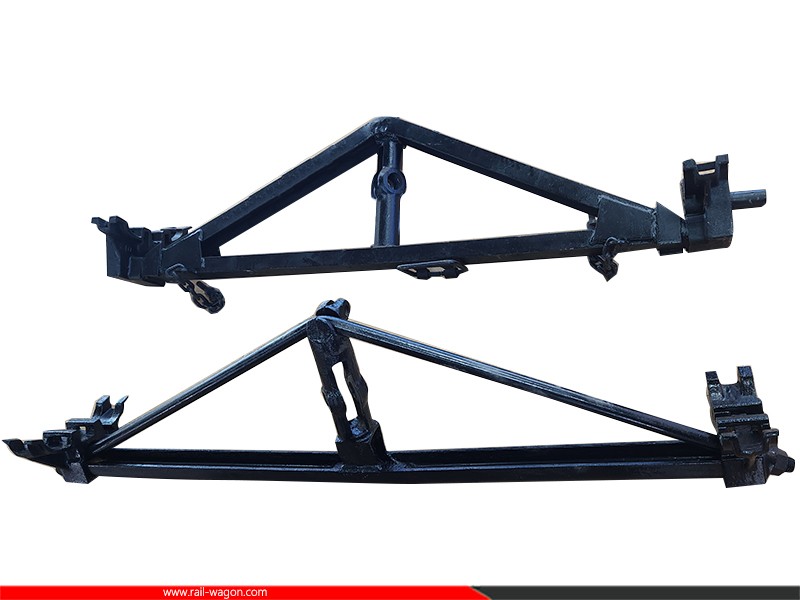

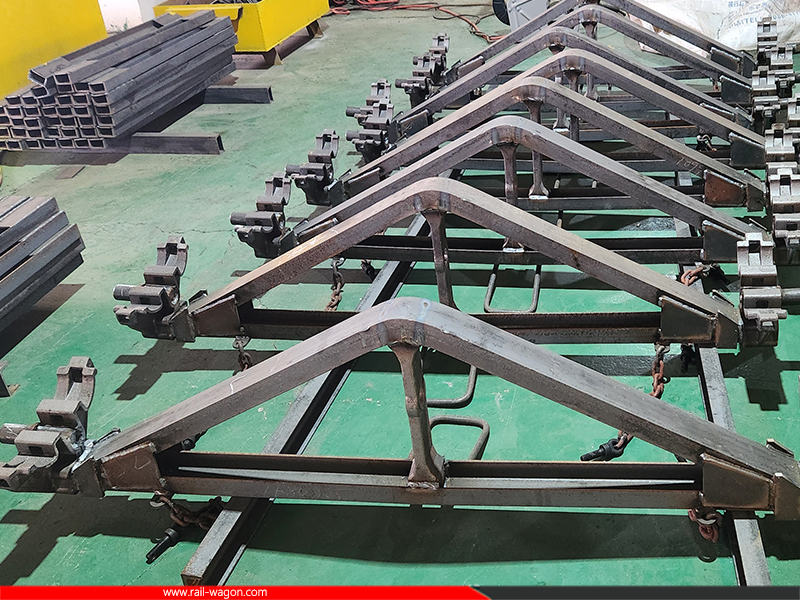

4. Detail photos:
