Roller Bearing Adapter AAR C 5"×9"/AAR D 5 1/2"×10" AAR E 6"×11" AAR M 201

Category： Bogie Parts
Application: Three piece ride control casting bogie
Applicable bearings types: AAR C, D, E, F
Bogie axle load: 16t ~30t
Production process: casting
INQUIRY EMAIL

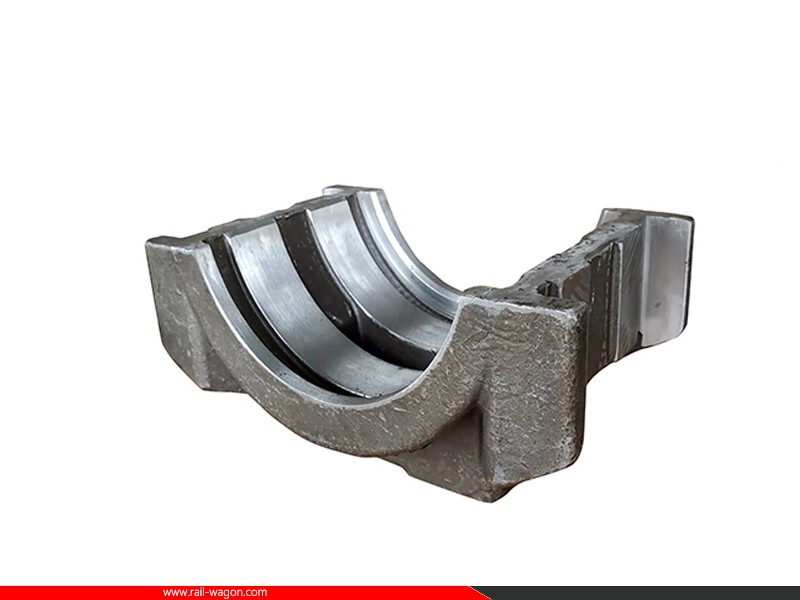

Roller Bearing Adapter AAR C 5"×9"/AAR D 5 1/2"×10" AAR E 6"×11" AAR M 201

1. Brief introduction:

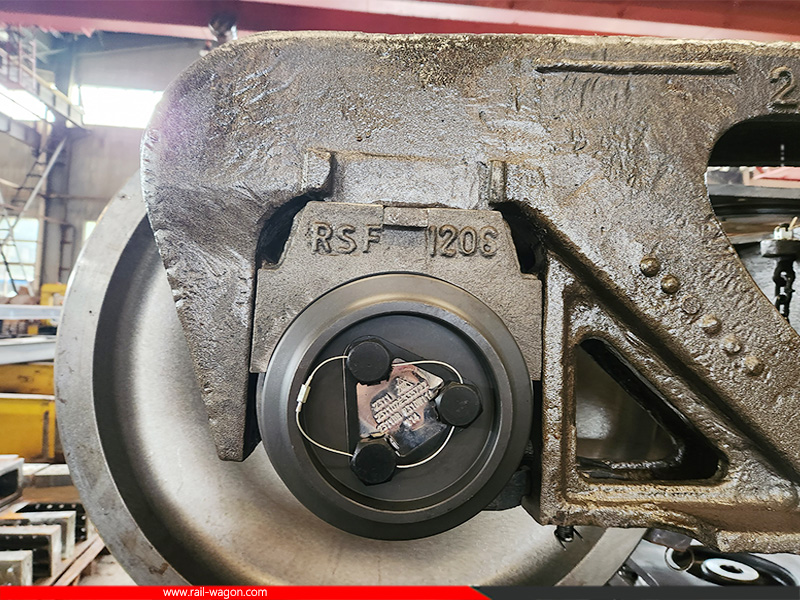

Bearing adapter is the connecting part to between the bearing without axle box and the bogie side frame. It transfers longitudinal and transverse loads. After long-term operation, bearing adapter is prone to damage such as cracking and wear, and maintenance operations such as appearance inspection and wear detection need to be carried out according to the technical standards for truck depot repair. Once the wear and damage reaches the limit, replacement is required.

Most of the adapters for three-piece ride control bogies are made of cast steel designed according to AAR M 201. The manufacturing process complies with AAR M-924. Due to optimization design, we could provide suitable adapters compatible with different bearing sizes like type C, type D, type E, type F, applicable for different axle load bogies.

2. The roller bearing adapters we could provide:

Bearing type	Type	Standard	Bogie axle load	Weight (kg)	L × W × H: mm
F type	AAR 6 1/2"×12"	AAR M-201	≤ 30t	16.6	254×254×116
E type	AAR 6"×11"	AAR M-201	≤25t	12	222×232×115
D type	AAR 5 1/2"×10"	AAR M-201	≤20t	8.5	220×220×110
C type	AAR 5"×9"	AAR M-201	≤16t	16.67	260×190×170
